Alumina or Zirconia Material Square Ceramic Rod High Temperature Resistant

Product Categories

Dongguan Ming Rui Ceramic Technology Co.,ltd

Contact Now

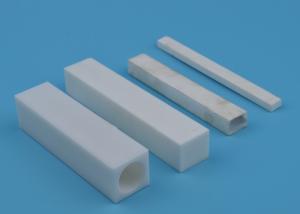

Alumina or Zirconia Material Square Ceramic Rod High Temperature Resistant

Name: Alumina or Zirconia Material Square Ceramic Rod High Temperature Resistant
Brand: Mingrui
Price: 1.21 USD

China Alumina or Zirconia Material Square Ceramic Rod High Temperature Resistant wholesale

Brand Name : Mingrui

Model Number : XF-500

Certification : ISO9001-2015.,UL,ROAH

Place of Origin : China

MOQ : 10 pieces

Price : USD1.21-5.16

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability : 10000 pieces month

Delivery Time : 10-15 working days after the order confirmed

Packaging Details : intertional carton box

Sample order : 1 pcs

Color : ivory / white

custom-made size : welcome

Forming way : Isostatic Press

advantage : good insulation performance

Usage : High temperature

Feature : High Wear-resistance

Use temperature : 1700C

Density : 3.9g/cm3

Produce time : 5 to 7 days

Contact Now

Alumina or Zirconia Material Square Ceramic Rod High Temperature Resistant

The products are made of advanced ceramic materials through multiple precision molding processes , it have excellent mechanical, chemical and mechanical properties.Hardness Strength Wear Resistance,Abrasive Resistance,Corrosion Resistance, High Temperature Resistance...

Type of ceramic plunger shaft piston rod us manufacturer (including but not only belows)

Shaft plunger	Pump plunger
Wear Plunger rod	Filling Pump plunger
Pins rod	Water Pump plunger
Pump piston rod	Plunger rod
Pump shaft rod	Sleeve and bushing plunger
Machinable plunger	Piston plunger
Tip: For different industries, equipment,and environment, ceramic plunger have different function, We can machining ceramic plunger shaft piston rod , such as surface polishing, internal and external pipe wall threads, metal parts bonded, different shapes etc by custom requirement.

Dimension and tolerance:
·Diameter as small as 0.2mm, depends on length
·Length as long as 550mm, as short as 0.5mm
·Diameter tolerance we could make as fine as 0.001mm
The length and special sizes can be customized, As per 100% drawing

Properties Sheet of zirconia and alumina :

Properties	Unit		Alumina				Zirconia
Properties	Unit	96%Al₂O₃	99%Al₂O₃	99.5%Al₂O₃	99.8%Al₂O₃	99.9%Al₂O₃	3Y-TZP
Colour	-	White	White	Ivory	Ivory	Translucent	white/black
Bulk density	g/cc	3.78	3.88	3.93	3.93	3.98	6.03
Water Absorption	%	0	0	0	0	0	0
Grain size	μm	5-10	2-5	2-5	2-5	2-4	0.4
Bending strength	MPa	380	350	360	380	300	1000
K_IC	MPa.m1/2	3~4	4	3~4	3~4	3~4	5~8
Vickers Hardness	GPa	13	14	14.5	14.5	15	13
Young's Modulus of Elasticity	GPa	360	370	370	380	390	200
Thermal Conductivity	W/m° K	24	28	32	32	34	2
Coefficient of Linear Expansion	10-6/°C	6.7	7.2	7.2	7.2	7.2	10.5
Dielectric Constant (1MHz)	-	9.1	9.5	9.6	9.6	9.9	33
Dielectric Loss Angle (1MHz)	-	0.0002	0.0001	0.0001	0.0001	0.0001	0.002
Dielectric Strength	V/m	15×10⁶	15×10⁶	15×10⁶	15×10⁶	15×10⁶	11×10⁶
Volume Resistivity	Ohm.cm	>10¹⁴	>10¹⁴	>10¹⁴	>10¹⁴	>10¹⁴	10¹³
(RT)	Ohm.cm	>10¹⁴	>10¹⁴	>10¹⁴	>10¹⁴	>10¹⁴	10¹³

Alumina or Zirconia Material Square Ceramic Rod High Temperature Resistant

Company Introduction

Our industrial ceramic parts include tube, rod, plate, disc, wafer, ring, seal, bearing, valves, pump plunger, beam, roller, shaft, screw, washer, sleeve, hunger, spacer, holder, carrier, insulator, fixture, clamp, chuck, nozzle, guide, frame, lining, and grinding media, milling ball or beads besides wear resist ceramic 99 alumina tube for water treatment.
These precision toleranced ceramic components or assemblies are used in a wide range of semiconductor, electronic, electrical, mechanical,

chemical, automotive, textile and the other industrial engineering applications, due to their extreme hardness, more resistances to wear, heat,

corrosion, high electric insulation, and low thermal expansion.

Using our core strengths of custom-engineering & designing, material expertise, operational excellence and rapid execution. We help our customers develop amazing solutions about tableware & fine ceramics.

Our experienced designing, engineering, manufacturing, exporting experts are ready to help with your next project

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
