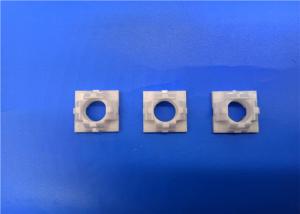

Customized High Thermal Conductivity 95%-99.7% Alumina Ceramic Block/Parts/Piece
Produce and machining
We can produce different sizes and shapes of the sheets for specific applications to different custom products.Such as drilling, polishing, stripes, concave and convex, screw holes, metal parts position and so on
1. Can Be Custom By Drawing Or The Parameter
2.Can Be Offer a Samples Within 1--10 Qty
3. The Shipping Time Of The Samples Within 2days
4. Quick Delivery Via Fedex,Dhl,Ups,Tnt Etc.
For more informations (the price,payment etc), Please contact us or email: admin@cerampart.com
Isostatic pressing is our specialty and is used where the size, shape or batch size of components makes dry pressing impracticable or uneconomical. We have a wide range of isostatic mandrels available, offering customers economic manufacture of standard tubular forms, plates, etc. Grinding, lapping, polishing & honing are carried out using diamond abrasives. These techniques are used to obtain tight control of dimensions and surface finishes.
Properties of Alumina and Zirconia Ceramic :
| Properties | Units | 95 Alumina | 99 Alumina | ZrO2 |
| Density | g / cm³ | 3.65 | 3.92 | 5.95-6.0g/cm³ |
| Water absorption | % | 0 | 0 | 0 |
| Coefficient of thermal expansion | 10-6/K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young's Mod | GPa | 280 | 340 | 210 |
| Poisson's ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness HV | MPa | 1400 | 1650 | 1300-1365 |
| Flexural Strength @ room temperature | MPa | 280 | 310 | 950 |
| Flexural Strength @700°C | MPa | 220 | 230 | 210 |
| Compressive Strength @ room temperature | MPa | 2000 | 2200 | 2000 |
| Fracture Toughness | MPa *m 1/2 | 3.8 | 4.2 | 10 |
| Heat conductivity @ room temperature | W/ m*k | 18-25 | 26-30 | 2-2.2 |
| Electrical Resistivity @ room temperature | Ω*mm2 /m | >1015 | >1016 | >1015 |
| Max use temperature | °C | 1500 | 1750 | 1050 |
| Resistance to acid alkaline | / | high | high | high |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV/mm | 16 | 22 | / |
| Thermol Shock Resistance | △ T ( °C ) | 220 | 180-200 | 280-350 |
| Tensile Strength @ 25 °C | MPa | 200 | 248 | 252 |
1. High heat resistance : Alumina ceramic has excellent thermal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
2. Good wear resistance : Alumina eramic is the material of choice for wear parts.
3. High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance,but relatively low strength and fracture toughness.Alumina ceramics are generally white but may also be pink or ivory.The color is derived from either the sintering additives or impurities in the raw materials.
Other type of ceramic sheet/ plate/ substrate/ piece/ blank
· Ttz: Magnesia Partially Stabilized Zirconia (Zro2) Sheet/ Plate/
· Ytzp: Yttria Partially Stabilized Zirconia (Zro2) Sheet/ Plate/
· Zdy: Yttria Fully Stabilized Zirconia (Zro2) Sheet/ Plate/
· Silicon Carbide Sheet/ Plate/
· Silicon Nitride Sheet/ Plate/
Application
Ceramic block can be used for a device or equipment in the special environment such as Power isolation, high temperature protection, durable wear, high and low temperature impact etc...and for the different device should be requiry different ceramic block shapes, like: some device need the round sheet be machining 8 hole to fasten to the box.
Certificate Shows

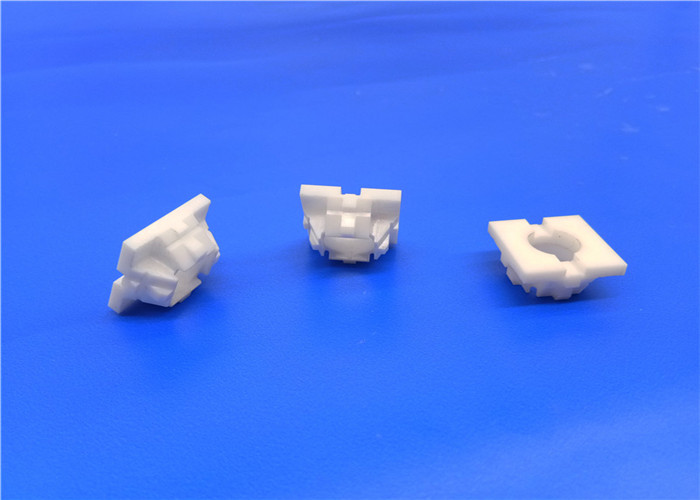

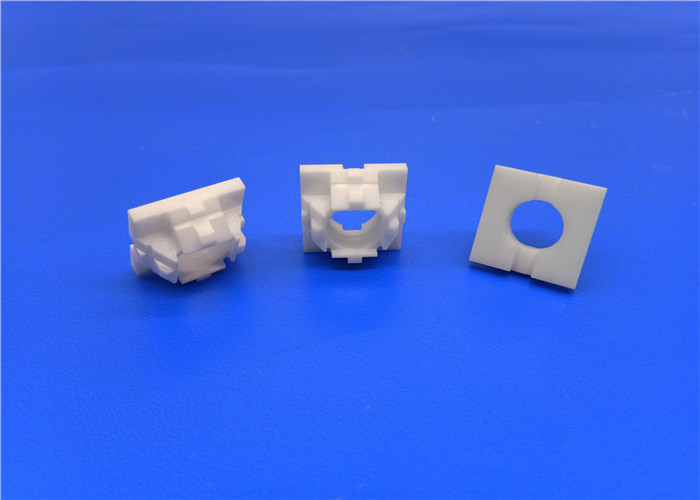

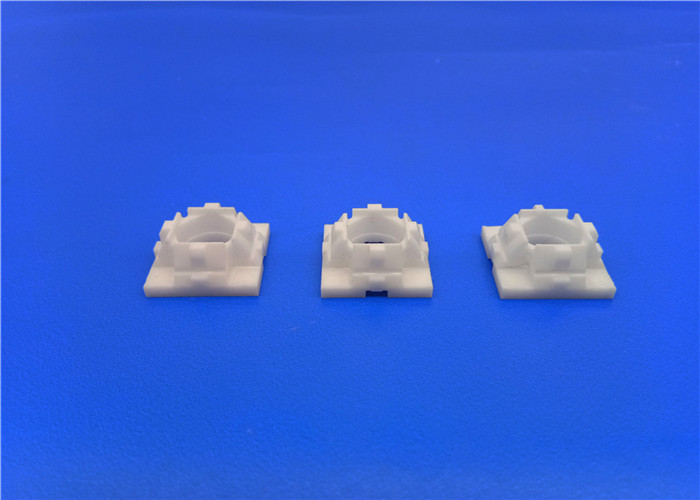

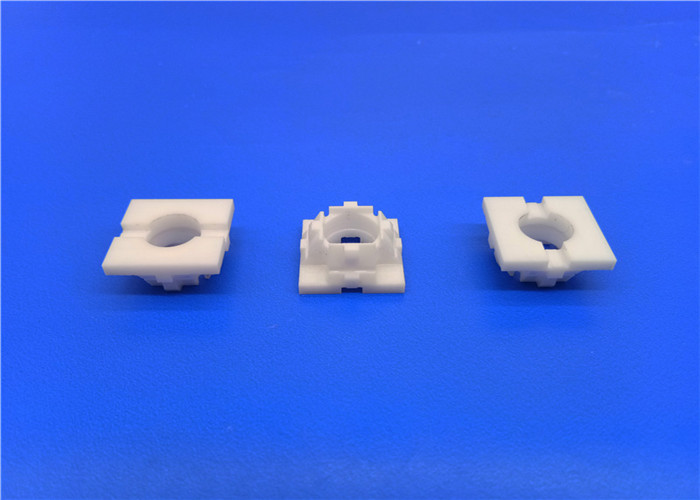

More photos of ceramic blocks :
Factory Show
Production Methods
FAQ :
1. What kind of industry ceramics do you have ?
We specialized in 95% 97% 99% alumina ceramic and zirconia ceramic parts .
2. What kind of molding method do can you supply ?
Dry Pressing , isostatic pressing , grouting , hot-chamber die casting , tape casting , injection molding, etc, injection molding and isostatic molding is the most commonly used.
3.What stabilizer do you use when processing ?
Yttria stabilizer is the most commonly used in our industrial ceramic parts.
4.Can you produce free samples for me ?
Yes usually , we can produce free samples for you but it is up to the product complexity .
5.What terms can you accept for payment ?
T/T, L/C , Western union , Money Gram and Paypal is welcome , but paypal and western union only for small -sum payment.
