High Temperature 99% Heat Resistant Alumina Ceramic Rod 5mm - 400mm Length

Dongguan Ming Rui Ceramic Technology Co.,ltd
Contact Now

High Temperature 99% Heat Resistant Alumina Ceramic Rod 5mm - 400mm Length

  • 1
  • 2
  • 3

Brand Name : Mingrui

Model Number : Customized requirement

Certification : ISO9001-2015.

Place of Origin : China

MOQ : 10 pieces

Price : USD1.21-5.16

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability : 10000 pieces month

Delivery Time : 10-15 working days after the order confirmed

Packaging Details : intertional carton box

Features : Machinable ceramic

Shipping : DHL EMS UPS FEDEX TNT

Precision : +- 0.001mm

structure : safety

abrasion resistance : high

specificaion : accept custom

specification : ISO 9001

Key words : heat resistant alumina ceramic rods

Lead time : 15-30days

Surface Roughness : Ra0.1

Contact Now

High Temperature 99% Heat Resistant Alumina Ceramic Rod 5mm - 400mm Length

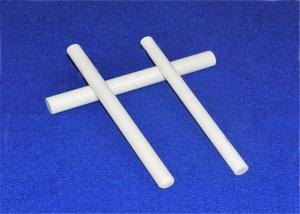

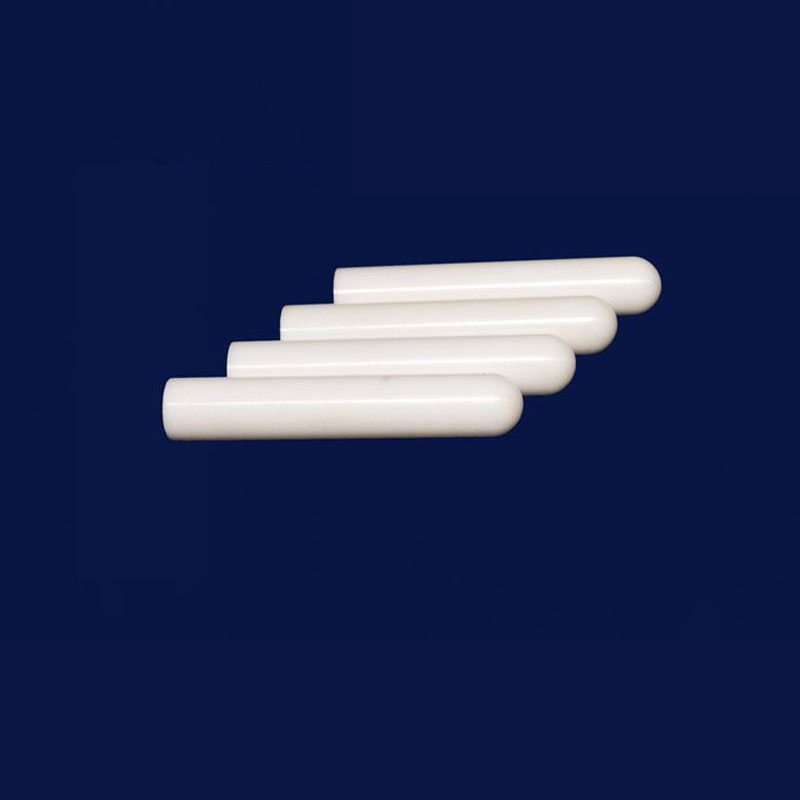

Ceramic rods are made from high purity alumina ceramic material, shaped by dry pressing, cold isostatic pressing, high temperature sintering and precision machining, with a number of advantages, such as abrasion resistance, corrosion resistance, high hardness, high toughness and low friction coefficient. They are widely used in medical equipment, precision machinery, precise measuring and testing equipment, and laser equipment in long-term, and the highest work temperature can reach to 1600 centigrade degree. Our common ceramic materials are zirconia, 95% ~ 97% alumina, 99% alumina, 99.5% alumina, 99.9% alumina, silicon nitride, etc.

Ceramic shaft and bush are featured by insulation, antimagnetic, static electricity-free, lubricity and resistant to high temperature, high pressure,chemical attack and oxidation. It is extremely popular in many areas, such as computer, telecommunication, power supply, transducer, instrumentation, industrial equipment, electric appliance and electric motor. And a lot of practical applications prove that our ceramic bearing has reached a state of high standard and quality.

Product Name Customized High Temperature 99% Heat Resistant Alumina Ceramic Rods
Material Alumina, Zirconia
Color White, Black and Blue
OD 0.2mm - 50mm, And According to drawings
Length 5mm - 400mm, And According to drawings
Surface Roughness Ra0.05
Torlerance +/- 0.001mm
Lead time: 15 days
Max. working temperature 1500 -1700 °C
Samples Avaliable
Shipping: Air Express (DHL/UPS/TNT/ FedEx) or Ocean Shipping

Properties Sheet of zirconia and alumina :

Properties Unit Alumina Zirconia
96%Al2O3 99%Al2O3 99.5%Al2O3 99.8%Al2O3 99.9%Al2O3 3Y-TZP
Colour - White White Ivory Ivory Translucent white/black
Bulk density g/cc 3.78 3.88 3.93 3.93 3.98 6.03
Water Absorption % 0 0 0 0 0 0
Grain size μm 5-10 2-5 2-5 2-5 2-4 0.4
Bending strength MPa 380 350 360 380 300 1000
KIC MPa.m1/2 3~4 4 3~4 3~4 3~4 5~8
Vickers Hardness GPa 13 14 14.5 14.5 15 13
Young's Modulus of Elasticity GPa 360 370 370 380 390 200
Thermal Conductivity W/m° K 24 28 32 32 34 2
Coefficient of Linear Expansion 10-6/°C 6.7 7.2 7.2 7.2 7.2 10.5
Dielectric Constant (1MHz) - 9.1 9.5 9.6 9.6 9.9 33
Dielectric Loss Angle (1MHz) - 0.0002 0.0001 0.0001 0.0001 0.0001 0.002
Dielectric Strength V/m 15×106 15×106 15×106 15×106 15×106 11×106
Volume Resistivity Ohm.cm >1014 >1014 >1014 >1014 >1014 1013
(RT)

Produce and machining

We can produce different sizes and shapes of the rod for specific applications to different custom products.Such as drilling, polishing, stripes, concave and convex, screw holes, metal parts position and so on

1. Can Be Custom By Drawing Or The Parameter

2.Can Be Offer a Samples Within 1--10 Qty

3. The Shipping Time Of The Samples Within 2days

4. Quick Delivery Via Fedex,Dhl,Ups,Tnt Etc.
For more informations (the price,payment etc), Please contact us or email: admin@cerampart.com

High Temperature 99% Heat Resistant Alumina Ceramic Rod 5mm - 400mm Length
Our Factory :
High Temperature 99% Heat Resistant Alumina Ceramic Rod 5mm - 400mm Length

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
