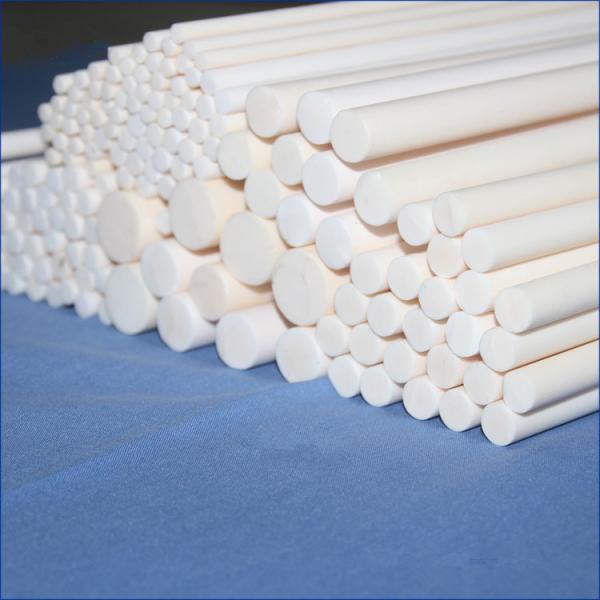

Dimension and tolerance:
·Diameter as small as 0.2mm, depends on length
·Length as long as 550mm, as short as 0.5mm
·Diameter tolerance we could make as fine as 0.001mm
The length and special sizes can be customized, As per 100% drawing
Specification:
1. Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF)...
2. Hardness Strength, Wear Resistance Up To Mohz 9.0 Levels...
3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm...
4. High Polished Surface Up To Rz0.8(Ra0.1) ...
5. Superior Mechanical Strength, MAX 10 MPa.m1/2 Fracture toughness,
6. Pressure Resistance, Max 2300MPa compressive strength...
7. Anti-High Corrosion Resistance, Such As Acid Alkali Resistance...
8. Long Service Life...
9. Other excellent property
95%,99%,99.7% Al2O3 Material Parameters:
| Item | Test Condition | Unit Symbol | 95%Alumina ceramics | 99%Alumina ceramics | 99.7%Alumina ceramics |
| The main chemical ingredient | | | Al2O3 | Al2O3 | Al2O3 |
| Bulk Density | | g/cm3 | 3.6 | 3.89 | 3.96 |
| Maximum Use Temperature | | | 1450°C | 1600°C | 1650°C |
| Water absorption | | % | 0 | 0 | 0 |
| ROHS Hardness | | | ≥85 | ≥89 | ≥89 |
| Flexural strength | 20° C | MPa (psi x 103) | 358 (52) | 550 | 550 |
| Compressive Strength | 20° C | MPa (psi x 103) | 2068 (300) | 2600(377) | 2600(377) |
| Fracture Toughness | K(I c) | Mpa m1/2 | 4-5 | 5.6 | 6 |
| Coefficient of thermal expansion | 25-1000° C | 1X 10-6/°C | 7.6 | 7.9 | 8.2 |
| Coefficient of thermal conductivity | 20° C | W/m °K | 16 | 30.0 | 30.4 |
| Thermal Shock Resistance | Tc | °C | 250 | 200 | 200 |
| Dielectricity constant | 1MHz.25°C | | 9 | 9.7 | 9.7 |
| Dielectric strength | | ac-kV/mm (ac V/mil) | 8.3 (210) | 8.7 (220) | 8.7 (220) |
| Volume Resistivity | 100°C | ohm-cm | > 1013 | > 1014 | > 1014 |
Company Introduction
applications, due to their extreme hardness, more resistances to wear, heat,
corrosion, high electric insulation, and low thermal expansion.
Using our core strengths of custom-engineering & designing, material expertise, operational excellence and rapid execution. We help our customers develop amazing solutions about tableware & fine ceramics.
Our experienced designing, engineering, manufacturing, exporting experts are ready to help with your next project
