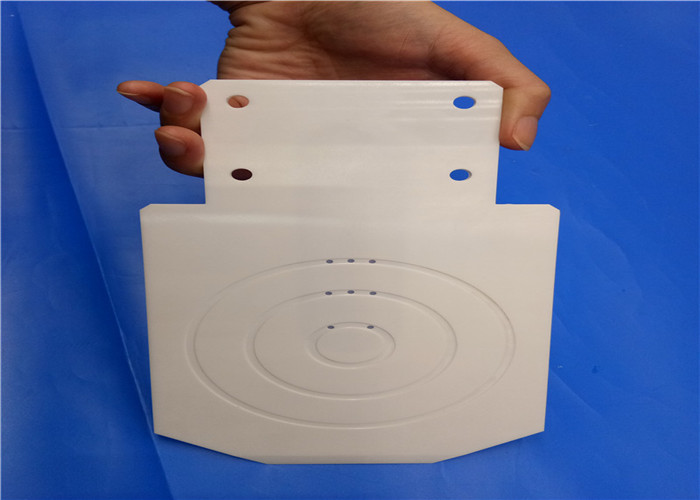

High Temperature and Prssure Alumina Ceramic Plate For Photovoltaic Equipment
Advantages:
1. Fire Resistance.
2. Long Working Life.
3. High Polishing Precision.
4. Superior Mechnical Strength.
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.
Isostatic pressing is our specialty and is used where the size, shape or batch size of components makes dry pressing impracticable or uneconomical. We have a wide range of isostatic mandrels available, offering customers economic manufacture of standard tubular forms, plates, etc. Grinding, lapping, polishing & honing are carried out using diamond abrasives. These techniques are used to obtain tight control of dimensions and surface finishes.
1.Wear-resistant material for surfaces of delivery equipment such as Chutes / Hoppers, Cyclone separators,Elbows, Cyclones, Convey or pulleys.
2.Wear-resistant material for liquid flowing pipes of petroleum, mining, steel ,power
3.Anti-corrosion from chemical substances
4.Thermal impact
Tiling will ensure significant savings on equipment and labour by supplying innovative solutions. Our products are used extensively wherever material wear due to abrasion, impact, friction, heat or corrosion.
1. High heat resistance : Alumina ceramic has excellent thermal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
2. Good wear resistance : Alumina eramic is the material of choice for wear parts.
3. High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance,but relatively low strength and fracture toughness.Alumina ceramics are generally white but may also be pink or ivory.The color is derived from either the sintering additives or impurities in the raw materials.
Properties of Alumina and Zirconia Ceramic :
| Properties | Units | 95 Alumina | 99 Alumina | ZrO2 |
| Density | g / cm³ | 3.65 | 3.92 | 5.95-6.0g/cm³ |
| Water absorption | % | 0 | 0 | 0 |
| Coefficient of thermal expansion | 10-6/K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young's Mod | GPa | 280 | 340 | 210 |
| Poisson's ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness HV | MPa | 1400 | 1650 | 1300-1365 |
| Flexural Strength @ room temperature | MPa | 280 | 310 | 950 |
| Flexural Strength @700°C | MPa | 220 | 230 | 210 |
| Compressive Strength @ room temperature | MPa | 2000 | 2200 | 2000 |
| Fracture Toughness | MPa *m 1/2 | 3.8 | 4.2 | 10 |
| Heat conductivity @ room temperature | W/ m*k | 18-25 | 26-30 | 2-2.2 |
| Electrical Resistivity @ room temperature | Ω*mm2 /m | >1015 | >1016 | >1015 |
| Max use temperature | °C | 1500 | 1750 | 1050 |
| Resistance to acid alkaline | / | high | high | high |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV/mm | 16 | 22 | / |
| Thermol Shock Resistance | △ T ( °C ) | 220 | 180-200 | 280-350 |
| Tensile Strength @ 25 °C | MPa | 200 | 248 | 252 |
Machining precision data: (reference data,the actual data is subject to the actual conditions)
(1)Shaft parts: Radial dimensions can reach 0.0015 mm; roundness 0.001 mm, concentricity 0.0025 mm, roughness 0.01
(2)Hole type parts:Machining minimum aperture of 0.3 mm, depth can reach 3 mm;The diameter of 1 mm can be radial 0.002 mm;Roughness 0.02-0.04;
(3)Plane processing:The tolerance can reach 0.002 mm, and the plane is 0.0015mm.
(4)Ceramic thread processing:the internal thread M2 can be grinds, thread precision GB-7h; The outer thread size is not limited, the precision GB-6g;

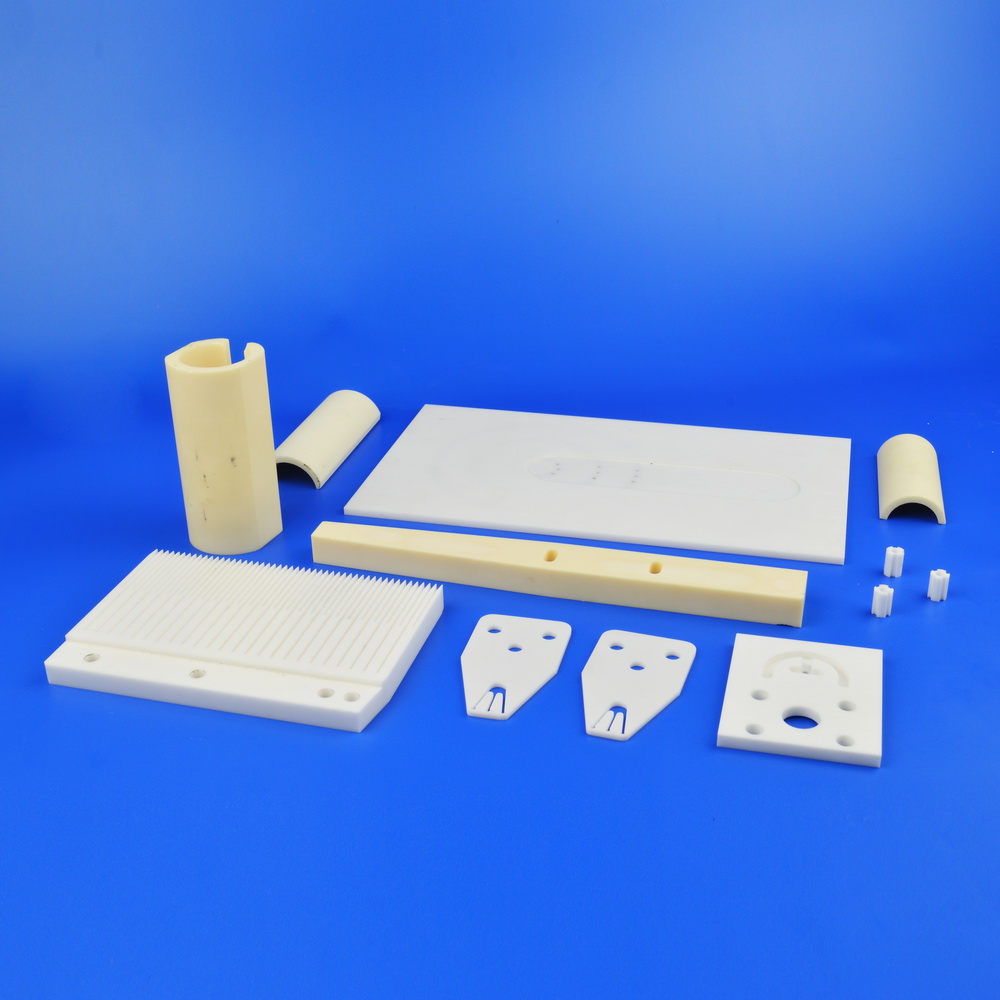

More photos of zirconia substrates :
Factory Show
Production Methods
FAQ :
1. What kind of industry ceramics do you have ?
We specialized in 95% 97% 99% alumina ceramic and zirconia ceramic parts .
2. What kind of molding method do can you supply ?
Dry Pressing , isostatic pressing , grouting , hot-chamber die casting , tape casting , injection molding, etc, injection molding and isostatic molding is the most commonly used.
3.What stabilizer do you use when processing ?
Yttria stabilizer is the most commonly used in our industrial ceramic parts.
4.Can you produce free samples for me ?
Yes usually , we can produce free samples for you but it is up to the product complexity .
5.What terms can you accept for payment ?
T/T, L/C , Western union , Money Gram and Paypal is welcome , but paypal and western union only for small -sum payment.
